Fully Automatic Plastic Bottle Silk Screen Printing Machinery Single Color

    Buy cheap Fully Automatic Plastic Bottle Silk Screen Printing Machinery Single Color from wholesalers

    Buy cheap Fully Automatic Plastic Bottle Silk Screen Printing Machinery Single Color from wholesalers
    • Buy cheap Fully Automatic Plastic Bottle Silk Screen Printing Machinery Single Color from wholesalers

    Fully Automatic Plastic Bottle Silk Screen Printing Machinery Single Color

    Ask Lasest Price
    Brand Name : SX
    Model Number : SX-102-B
    Certification : CE, ISO9001:2008
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10 Sets Per Month
    Delivery Time : 20 Days After Received Down Payment From Buyer
    • Product Details
    • Company Profile

    Fully Automatic Plastic Bottle Silk Screen Printing Machinery Single Color

    Plastic Bottle Silk Screen Printing Machinery Cheap Price Single Colors


    Product Description


    The machine is multicolor automatic screen printer with multifunction. It suitable to print different kinds of round, oval, flat objects. Widely accepted by the small and medium-sized enterprises because of its high quality competetive price. It is widely applied to the package of glass bottles, alcohol bottles and cosmetic container, etc.

    Features:


    1. The innovative transmission makes it very steady in passing the bottles, easy to shift between different types of bottles, easy to operate.
    2. This machine allows to print up to 5 colors or more, each slip machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
    3. We adopt the imported PLC and touch screen display from OMRON, PANASONIC, DELTA, with kinds of monitor system to ensure the machine running stable at high speed.
    4. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.
    5. The main components are imported from
    USA, German and Japan to achieve the machine quality and stability of printing.
    6. Three languages such as Chinese, English and Spanish can be choosed.
    7. We can customize machine according to the special products.

    Parameters:


    Printing speed:Round 4000pcs / hrOval 5000pcs / hr
    Printing size:Round Dia.20-100mmLength 25-300mm
    Oval Width 25-120mmLength 25-300mm
    Compressed air:0.6MPa
    LPG:0.15MPa
    Machine size:Main/Aux 1980*1000*1500mm
    Unload conveyor 1700*500*700mm
    Unit Power:Voltage 380VAC, 3-PHASE, 50HZ
    UV curing power:5KW
    Motor Power:1.5KW


    Applications:


    plastic tube, cosmetic bottles, milk bottles, medical bottles, drinking bottles, lubricating oil bottles, glass silicon, pen sleeves, ceramic, etc.


    The Samples

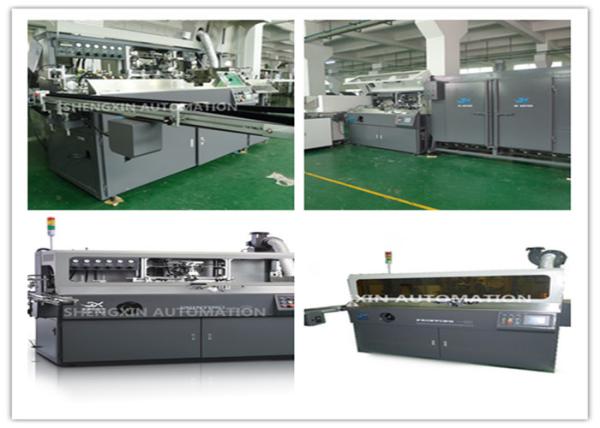

    Machine details:



    How to order our machine?


    1. Choose machine you are interested in, send us an enquiry.
    2. We will reply you.discuss more detailed information for machine.
    3. Confirm order, and pay us deposit.
    4. We will arrange to produce after receiving your payment.
    5. After finishing machine,we will inform you and tell you machine information, such as packing way,dimension, weight and so on.
    6. We will shipping machine after receiving your balance.


    shengxin automation printers product list.pdf
