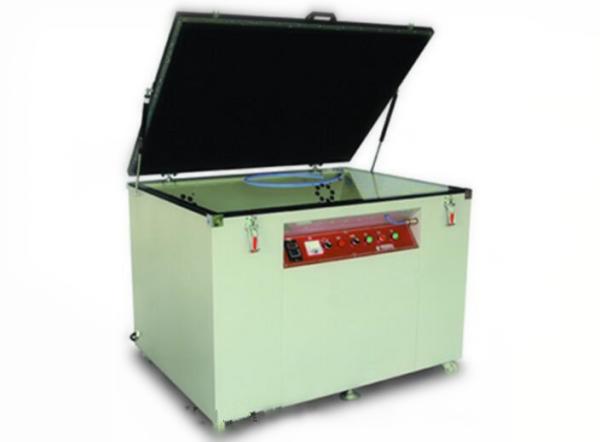

Semi Automatic Vacuum Exposure Unit Screen Printing For Making Stencil

Product description:

Application Scope:

This automatic exposure machine used for exposing the high quality stencils for half tone jobs and highly dense line stencils.

Features and Performance:

1. Fast start type exposure systems (including exposure lamp, the trigger capacitors, transformers, etc. ); Stability and uniform light intensity and exposure patterns Fine lines.

2. Importing seal blanket, soft and good elasticity, soft and Durability, sealing and attached nature are particularly good.

3. Brand high efficiency energy-saving lamp, strong exposure and long life duration, improving the precision of exposure.

4. Adopt special energy-saving glass and ensure the flatness of working table, In order to ensure the accuracy of exposure.

5. High-powered suction vacuum powerful machine, ensure the closely touch of film and screen plate, in order to ensure precision of exposure, so that the graphics will not be reduced, enlarge, or offset.

6. The surface adopt electrostatic spray and stoving varnish, ensure the durability and anti-corrosive of machine.

Parameters:

The glass area: 900X1200mm；
The thickness of Glass: 10mm；
Power of UV:2kw；
Maximum screen plate size:800×1100mm；
Maximum exposure area:850mm×1150mm；
Vacuum:0.05mpa；
Light source watt density:80w/cm；
Power:220V/380V
Size:1000×1250×1020mm ( L × W × H)
Weight:120kg

Shenzhen Shengxin Automation Equipment Co., Ltd is a high-tech enterprise. With more than ten years development, Shengxin has become a leading manufacturer and exporter of high end printing equipment.

We focus on the development and research, manufacture, and marketing of high end automatic screen printing machine, hot stamping foil machine, caps assembly machine, heat transfer machine, offset machine and labeling machine. These products are mainly used for the printing on the round surface, oval surface and flat surface with the substrate of plastic, glass, ceramic, wood and metallic. The applications include the wine packing, Detergent and personal care products, cosmetic, medical packing, etc.We own a professional R&D team, keeping very kind of cooperation with the R&D institute of Tsinghua University to develop the visual detection system which improve the QC efficiency.

Quality and service are the top concern. In order to control the quality, we adopt the advance manufacture machine from Japan and German. The main components of our printing machine are imported from Japan, German and USA to ensure the quality, has got the CE and ISO9001:2008 certificates. We ensure that the quality satisfy the customer’s needs by strict quality management.Now our products are exported to more than 40 countries.We have enjoying high reputation in printing market domestically and internationally.

Our mission is to make the printing and packing more Intelligent, more easier, more efficient.

Our vision is to be a top supplier of printing equipment and provider of service.
